Openwell Submersible pumps

Grundfos SmART SUB

Grundfos , Single Phase and Three Phase Horizontal open well Submersible Pumpsets are designed for under water application, and therefore, there is no need for priming or a foot valve. These pumps are suitable for open well or tanks where there are wide fluctuations in water level.

Carbon Radial bush bearing
SS Thrust bearing and Carbon pads at both Drive End and
The Anti-corrosive coating on the Cast Iron parts - free from rust and corrosion
Locally rewindable and repairable
Supplied with Starter Box for 1 phase Pumps

Power Rating:

0.5 HP-2.0 HP (Single Phase).

1.5 HP-10.0 HP (Three Phase-Horizontal)

Openwell Submersible

VEEBA Single Phase and Three Phase Open well Submersible Pumpsets are designed to transfer clean water from reservoir to surface or Over head tank. The wide range of submersible pumps economically priced with better quality.

Suitable For

Sump to Over Head Tank Filling
Farms, Gardening, Landscaping & Fountains
Industrial and rural water supply
Domestic Homes, Gardens, Hotels and Apartments.
Agriculture and Industries
Fountains and Water Bodies
Parks and Estates

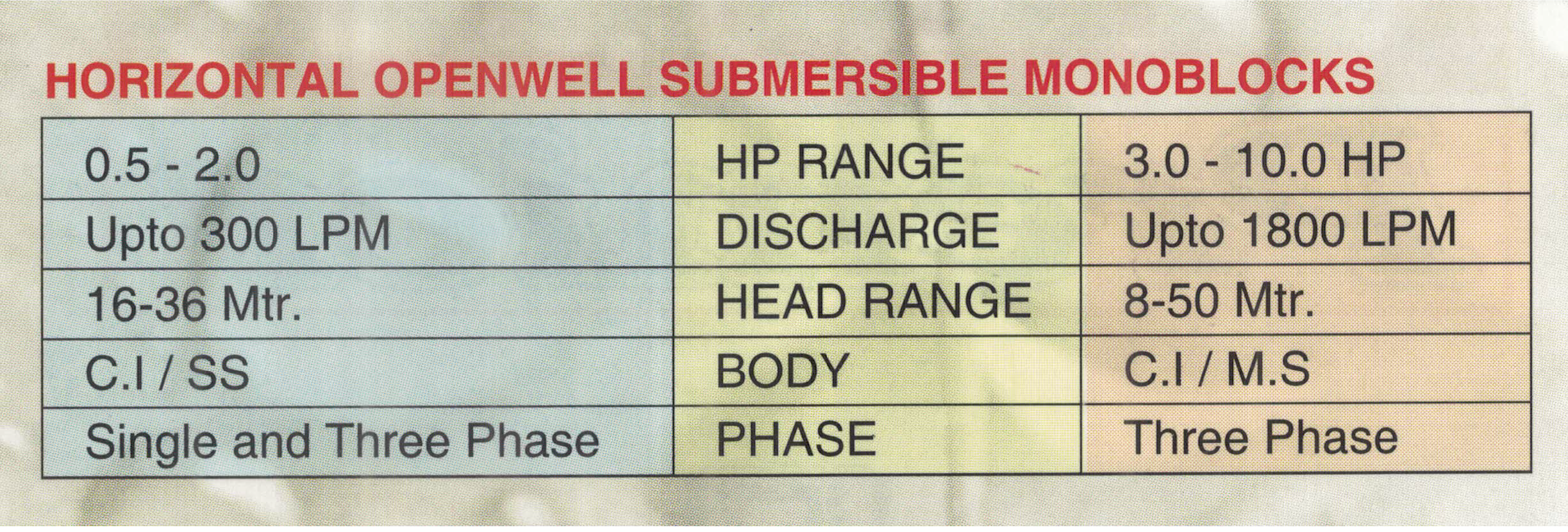

Horizontal Openwell Submersible Monoblocks

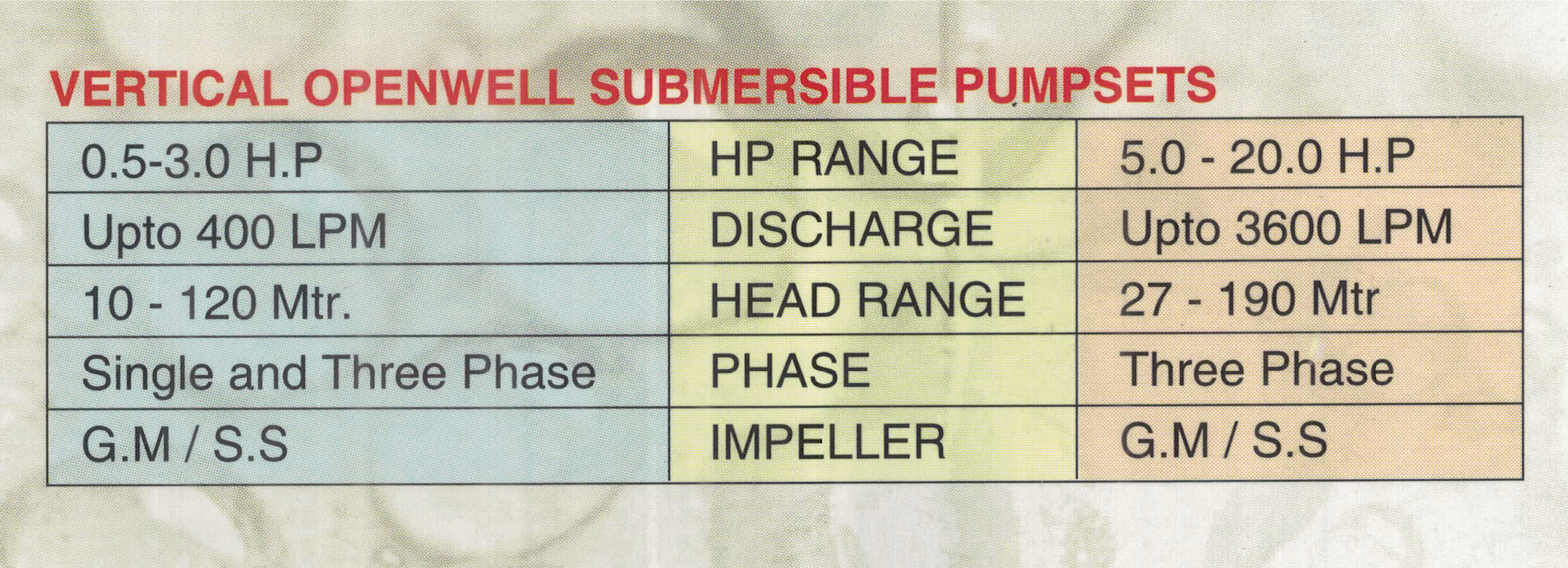

Vertical Openwell Submersible Monoblocks

Borewell Submersible Pumps

SP BORE WELL SUBMERSIBLE PUMPS

The Grundfos SP is a 4-inch multi-stage submersible pump, designed for operation in Boreholes. SP is made of corrosion resistant stainless steel, offering high operating reliability regardless of the application. The SP offers high efficiency along with high resistance to sand and other abrasive particles.

GRUNDFOS SB HF SUBMERISBLE PUMP

Grundfos SB HF is a submersible pump designed for water supply and pressure boosting in domestic and rainwater applications. The pump is built from stainless-steel materials resistant to corrosion. The double mechanical shaft seal ensures trouble free operation. The maximum installation depth is 15 m below the water level, SB HF has an inlet strainer placed at the bottom of the pump. The stainless-steel strainer has 1 mm mesh to prevent large particles from entering the pump housing. The motor is placed in the pump sleeve and it is cooled by the pumped liquid.

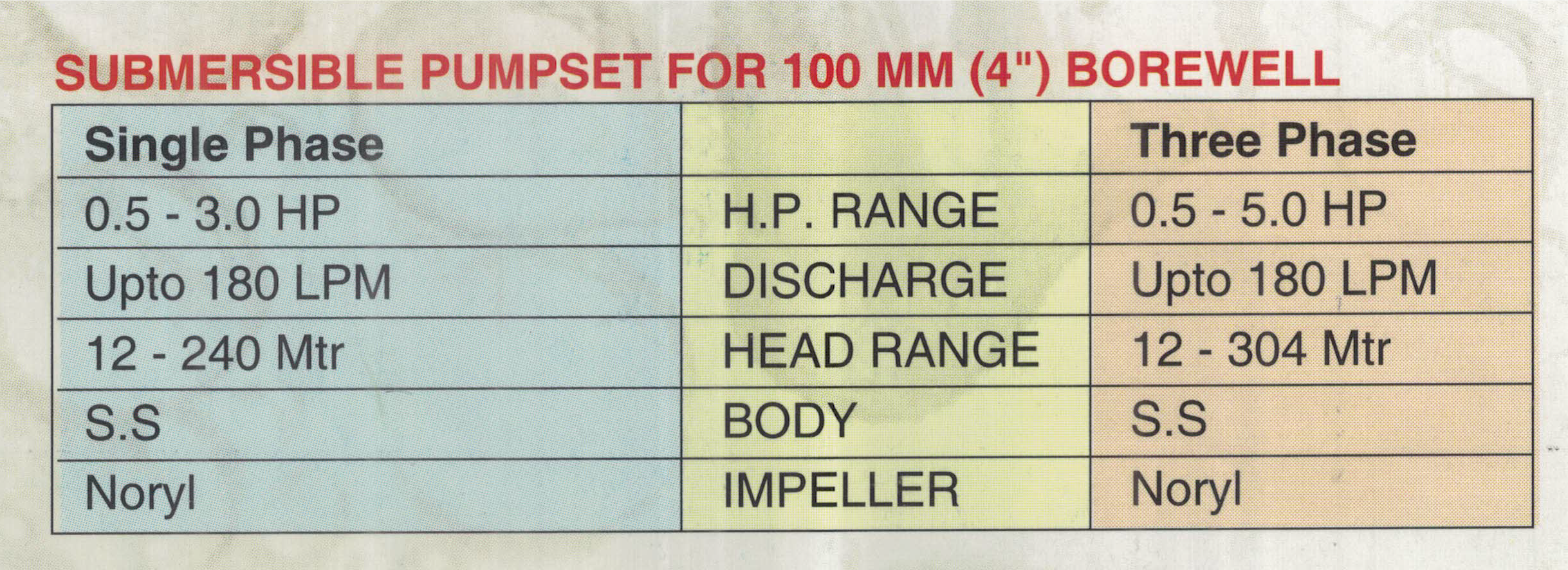

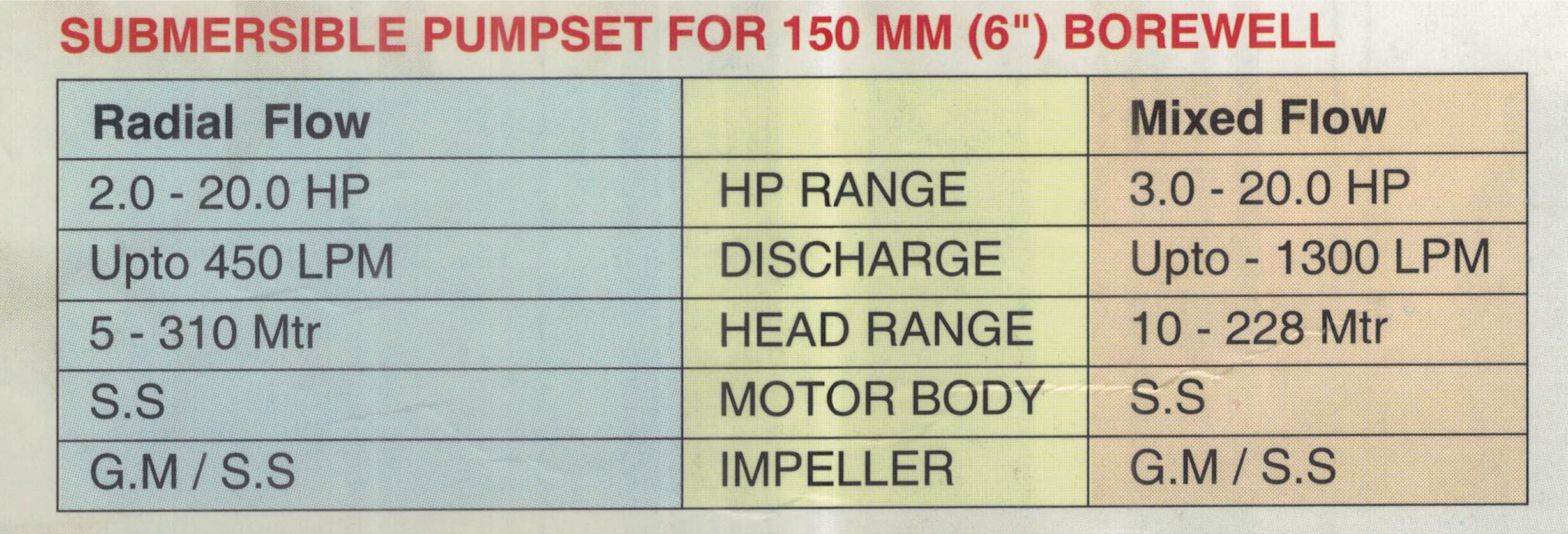

Borewell Submersible Pump

VEEBA (V3)(V4)(V5) (V6) Borewell pumpsets are of wet type water lubricated Motor coupled with various type of impellers gives superior durability with best in class performance

Suitable for :
-Domestic and Commercial buildings, Hotels and Apartments.
-Agriculture, and Industrial sites,
-Parks, Estates and Water Suppliers

Suitable For

Ideal for Water lifting in bunglows
Hospitals, Apartments
Overhead storage water tank filling
Watering for Gardens
Decorative water Fountains

General Features

Built with excellent design and technology
Energy efficient motor design
Designed for better peformance
Withstand wide voltage fluctuations
Wide ranges available for domestice & agriculture

Monoblock pumps

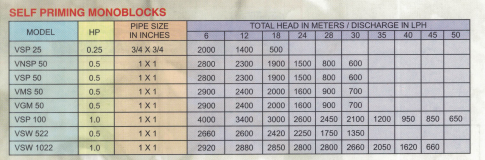

Self priming Monoblock

Self Priming Monoblock Pumps are regenerative type. These pumps can lift because they include a special "fattened belly" type of volute (casing) that holds a small amount of liquid in it, even when the suction pipe is evacuated. They also include a flapper style check valve built into the pump suction port.

Suitable for:
-Domestic and Gardens, Hotels and Flats.

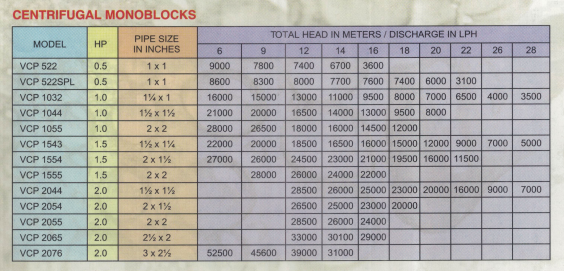

Centrifugal Monoblock

The Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated.

The centrifugal monoblock pumps are mainly recommended for freshwater as well as fluids which are not chemically violent toward the components of the pump. These pumps are mainly used for agriculture, industrial, civil due to their consistency and strength.

Suitable for:

-Domestic and Gardens, Hotels and Apartments.
-Agriculture, Industries,

Multi Stage Centrifugal Pump- HORIZONTAL

Grundfos CM are reliable, quiet and compact horizontal end-suction pumps. The modular pump design makes it easy to make customised solutions. The CM pumps are available in cast iron and stainless steel.

Regardless of the application and environment you are working in, rest assured that there is a CM or CME pump for you. Thanks to numerous configuration options and a range of materials, the CM and CME pump range can operate in temperatures from -30 °C to 120 °C.

All models in the range are also available with many customisation possibilities, such as oversize motors in case of higher viscosities and densities. Its customisation and flexibility make it an optimal solution for installation and interaction with other components in small and large systems or as a stand-alone pump.

Suitable For:

Commercial air conditioning
Commercial water pressure boosting
District heating
Domestic water pressure boosting
Biofuel
Bottle washing
CIP/SIP
Cooling

Desalination
Leach mining
Painting systems
Filtration
Wash and clean
Temperature control
Industrial boiler systems
Industrial heating
Industrial water supply

Industrial water treatment application
Water reuse
Irrigation
Water distribution
Drip micro spray
Frost protection
Pivot pressure boosting
Irrigation surface water and transfer

Multi Stage Centrifugal Pump- VERTICAL

Vertical, multistage centrifugal pump with suction and discharge ports on the same level.

Poor pump efficiency requires more energy and costs money. With world-class efficiency and a broad selection of flow sizes and working pressures, the CR range of multi-stage centrifugal pumps are the perfect high pressure pumps for customers seeking to make savings in their operating budget. The thoroughly-optimised design ensures world-class energy efficiency and saves money.

The CRE is a multi-purpose in-line multi-stage pump with a built-in variable-speed drive available in a wide variety of flow and pressure sizes and is built from AISI 304 grade stainless steel/cast iron. The variable-speed drive continually adapts pump performance to match current conditions and desired pressure, temperature or flow. This makes the CRE perfect for a variety of applications including water supply, washing and cleaning, water treatment, boiler feed, chemical industries, temperature control and mining.

Suitable For:

Commercial air conditioning
Commercial fire protection
Commercial heating
Commercial water pressure boosting
District cooling
District heating
Biofuel
Bottle washing
Frost protection
Pivot pressure boosting

CIP/SIP
Cooling
Desalination
Filling
Leach mining
Machining
Painting systems
Filtration
Wash and clean
Temperature control
Industrial boiler systems

Industrial water supply
Industrial water treatment application
Industrial fire protection
Industrial heating
Industrial wastewater
Water reuse
Drinking water treatment
Irrigation
Solar water solutions
Surface water intake
Water distribution
Drip micro spray
